DESCRIPTION

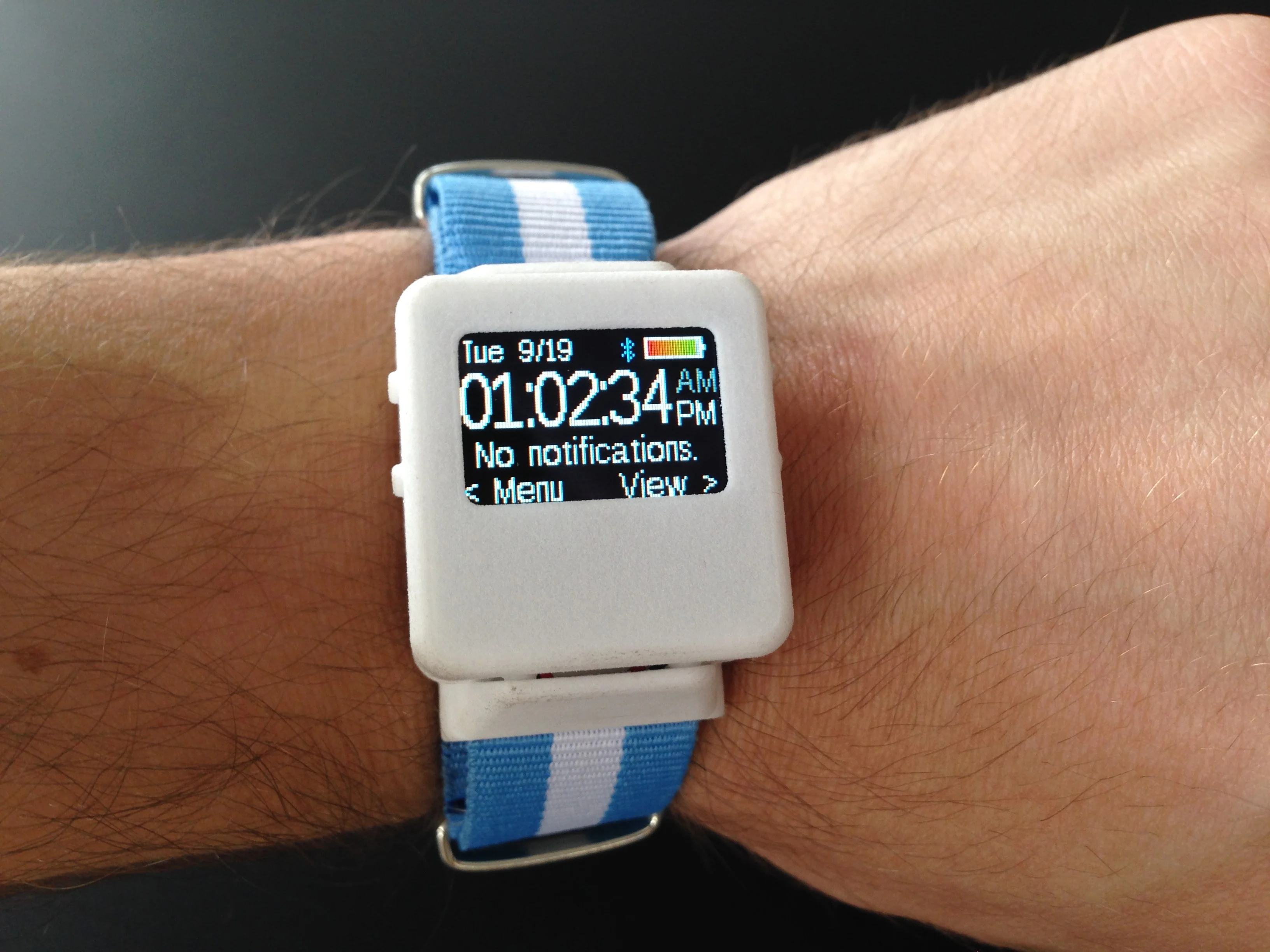

This TinyScreen Smart Watch Kit lets you build and customize your own SmartWatch that can connect with your Android or Apple device. The watch can be configured to use several different watch faces and can use Bluetooth 4 (also known as Bluetooth Low Energy and Bluetooth Smart) to communicate with your smartphone (Android 4.3+ and iOS 7+).

This kit includes the following items:

• TinyDuino Processor Board w/ lithium battery support - Runs your Arduino and TinyScreen programs
• USB TinyShield - Used to communicate with your TinyDuino from your computer and upload new programs (USB Top Mount version)
• TinyScreen - OLED TinyShield - A beautiful 96x64 color OLED display
• TinyShield Bluetooth LE - ST - enables communication with your Android or Apple phone
• 150 mAh Rechargeable Lithium Polymer Battery - Power your TinyDuino projects
• Optional - 3D printed housing and wrist strap - Used to hold the circuits boards on your wrist

TECH SPECS

The 3D design files are provided free of charge and are open source, so you can modify them to make your own custom watch enclosure, or print them on your 3D printer (note - these files are designed for a commercial dual-head 3D printer, so it may likely not print nicely on a consumer-level single head printer).

You may need to use a "Scale" function and scale each axis (X, Y, and Z) equally by a constant 25.4 to make your parts the proper size.



NOTES

• A micro USB cable is not included in the kit.
