DESCRIPTION

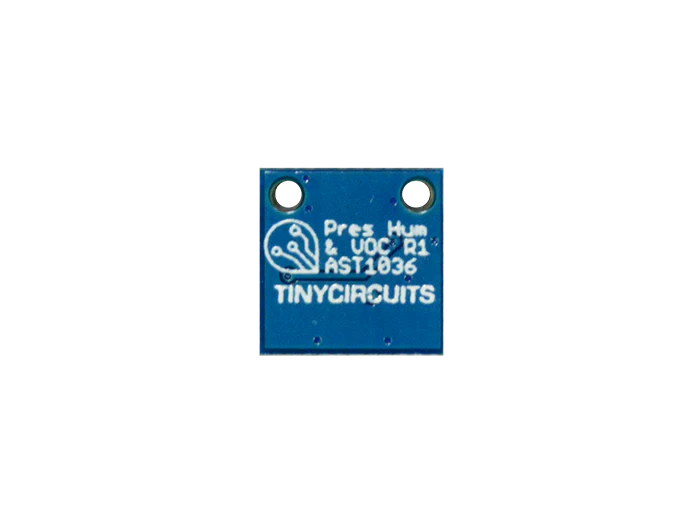

This Wireling lets you measure Temperature, Pressure, Humidity, and Volatile Organic Compounds (VOCs) via the BME680. This Wireling sensor is an upgrade from the Pressure & Humidity Wireling that uses the BME280 to measure Pressure and Humidity.

New to Wirelings? Check out the Wireling Overview!

Note* 5-Pin Wireling cables not included and sold separately.

TECH SPECS

Bosch BME680 Sensor Specs

• Digital interface I²C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
• Operating range -40 - +85°C, 0-100 % r.H., 300-1100 hPa
• Humidity, Pressure, Gas sensor can be independently enabled / disabled
• RoHS compliant, halogen-free, MSL1

Pressure Sensor

• RMS Noise 0.12 Pa, equiv. to 1.7 cm
• Offset temperature coefficient ±1.3 Pa/K, equiv. to ±10.9 cm at 1 °C temperature change

Humidity Sensor

• Response time 8 s
• Accuracy tolerance ±3 % relative humidity
• Hysteresis ±1.5% relative humidity

Gas Sensor

• Response time < 1s (for new sensors)
• Power consumption < 0.1mA in ultra-low power mode
• Output data processing: direct index for air quality (IAQ) output

TinyDuino Power Requirements

• Voltage: 3.0V - 5.5V
• Current:
• 2.1 µA @ 1 Hz humidity and temperature
• 3.1 µA @ 1 Hz pressure and temperature
• 3.7 µA @ 1 Hz humidity, pressure, and temperature
• 0.15 µA in sleep mode
• Due to the low current, this board can be run using the TinyDuino coin cell option.

Pins Used

• A5/SCL - I²C Serial Clock line
• A4/SDA - I²C Serial Data line

Dimensions

• 10mm x 10mm (.394 inches x .394 inches)
• Max Height (from the lower bottom of Wireling to upper top Wireling Connector): 3.70mm (0.15 inches)
• Weight: 1 gram (.04 ounces)

NOTES

• You can also use this Wireling without the TinyDuino – modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!

DOWNLOADS

• BME680 Datasheet
• Eagle Files
• Schematic
• Arduino Sample Code
• CAD 3D and 2D Files
