Temperature Sensor Wirelingā
$3.95
The Story
DESCRIPTION

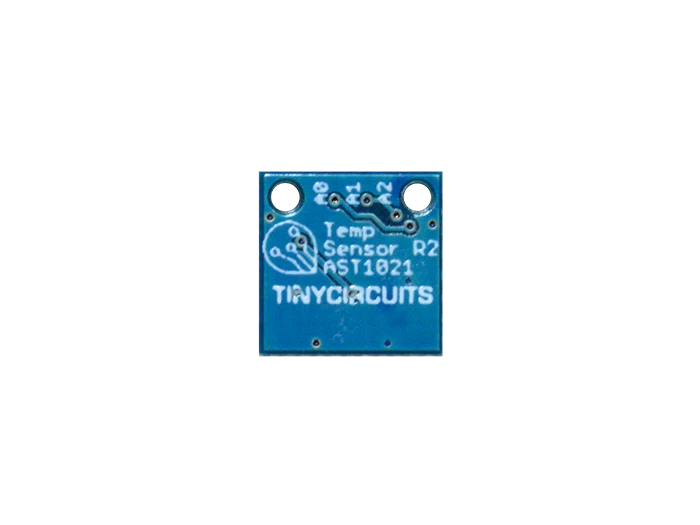

This Wireling features the PCT2075 Temperature Sensor. This sensor has a range of -55Ā°C up to 125Ā°C and communicates over the IĀ²C bus.
New to Wirelings? Check out theĀ Wireling Overview!
Note*Ā 5-Pin Wireling cablesĀ not included and sold separately.
TECH SPECS
PCT2075 Temperature Sensor Specs
- Temperature range fromĀ -55Ā°C up to +125Ā°C
- 11 bit ADC that offers a temperature resolution of 0.125Ā°C
- Temperature accuracy of:
- Ā±1 Ā°C (max.) from -25 Ā°C to + 100 Ā°C
- Ā±2 Ā°C (max.) from -55 Ā°C to + 125 Ā°C
- Programmable temperature threshold and hysteresis set points during operation
- Supply current of <1.0 ĀµA in shut-down mode for power conservation
- Stand-alone operation as thermostat at power-up
TinyDuino Power Requirements
- Voltage: 3.0V - 5.5VĀ
- Current:Ā 70.0 ĀµA (Normal Mode). Ā Due to the low current, this board can be run using the TinyDuino coin cell option
- Current: <1.0 ĀµA (Shut-Down Mode)
Pins Used
- A5/SCL - IĀ²C Serial Clock line
- A4/SDA - IĀ²C Serial DataĀ line
Dimensions
- 10mm x 10mm (.393 inches x .393 inches)
- Max Height (from the lower bottom of Wireling to upper top WirelingĀ Connector): 3.70mm (0.15 inches)
- Weight: 1 gram (.04 ounces)
NOTES
- You can also use this shield without the TinyDuino ā modifying the connecting cable by removing the opposite connector and stripping/tinning the wires, you can solder the connector cable to any other microcontroller board of your choice!Ā Ā Ā
